About ATOMSTACK :
100% laser engraving machine manufacturer located in China, welcome to visit our factory whenever you like! It is important to know that our factory do not just sell "boxes", but we offer support and advice to get the best results with the laser engraver you choose. We are always available to provide the spare parts you need with your laser engraving machine .You could reply on us for the consistent quality and service!

About Tax:
we do not including any tax and duty!
About customs charging fee . nobody can control , every country customs has different Import and export tariff system.

About Maintenance:
All machines have 13 months warranty against manufacturing defects,buy it with confidence. If any breakdown, send us the working video, we shall offer solutions for you. If the item was damaged during transportation or cannot be used normally, pls do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free.

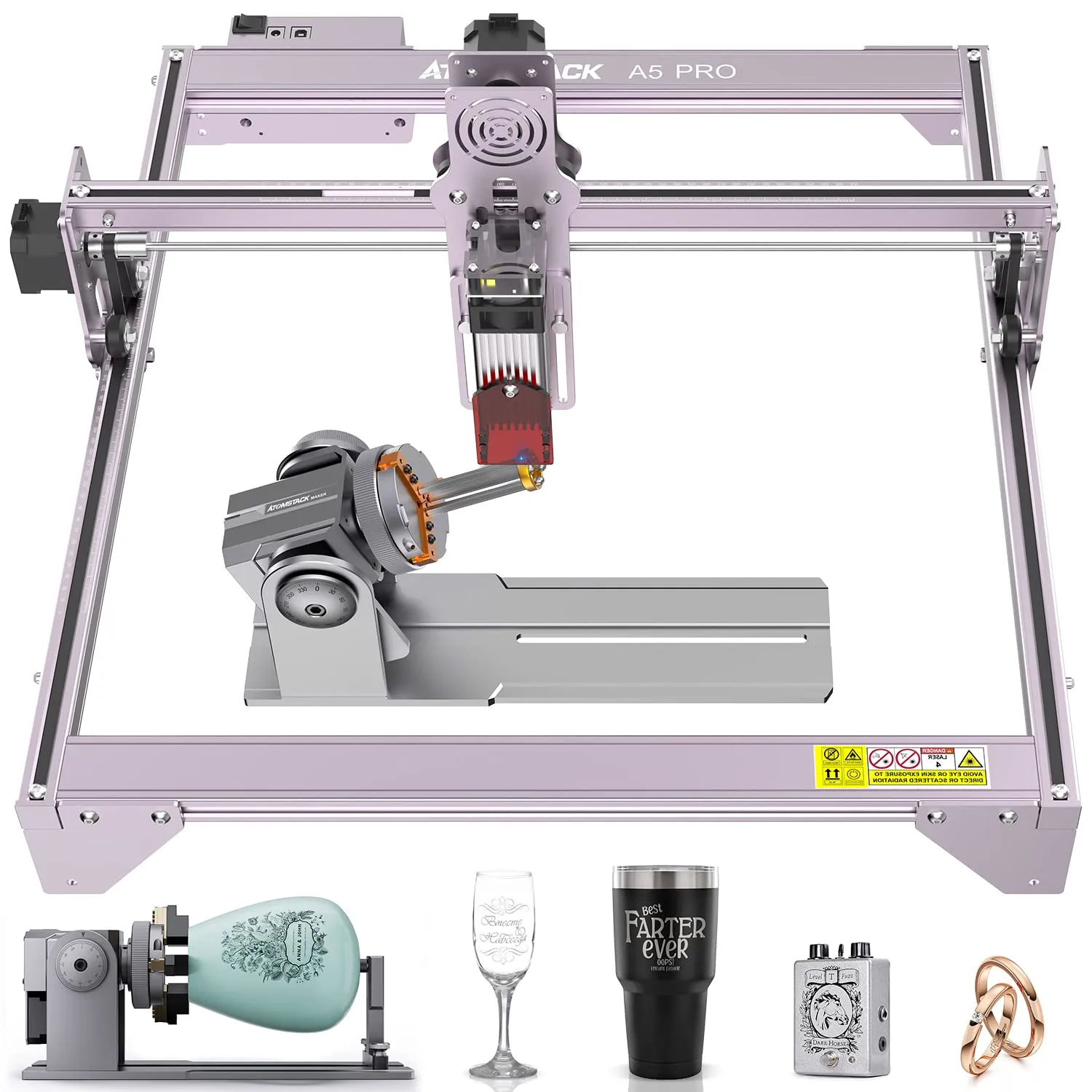

ATOMSTACK A5 Pro 40W Laser Engraver with R1 PRO Laser Engraver, Multifunctional Claw Disc Roller, DIY Engraving Cutting Machine for Wood, Metal, 410 x 400 mm

ATOMSTACK A5 Pro Laser Engraver

Specifications:

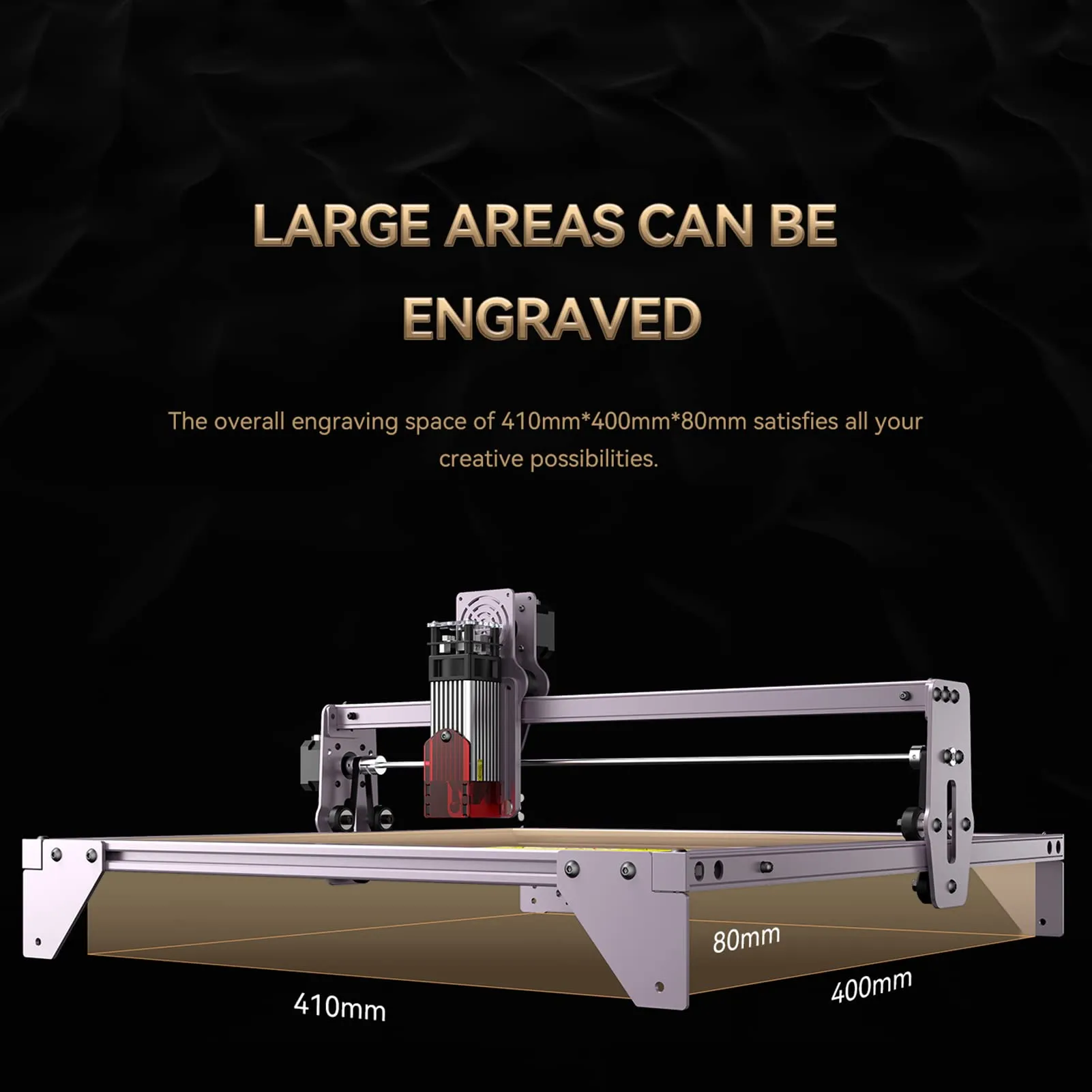

Engraving size: 410 x 400 mm.

Engraving/Cutting Material:

Engraving material: wood, bamboo, cardboard, plastic, leather, circuit board, aluminium oxide, non-reflective coating and painted metal, blackened utility knife;

Cutting material: cardboard, non-woven fabric, veneer, acrylic, slightly thin plastic board;

Laser power: 40W

Laser output optical power: 5-5.5W

Laser wavelength: 455±5nm

Engraving accuracy: 0.01 mm.

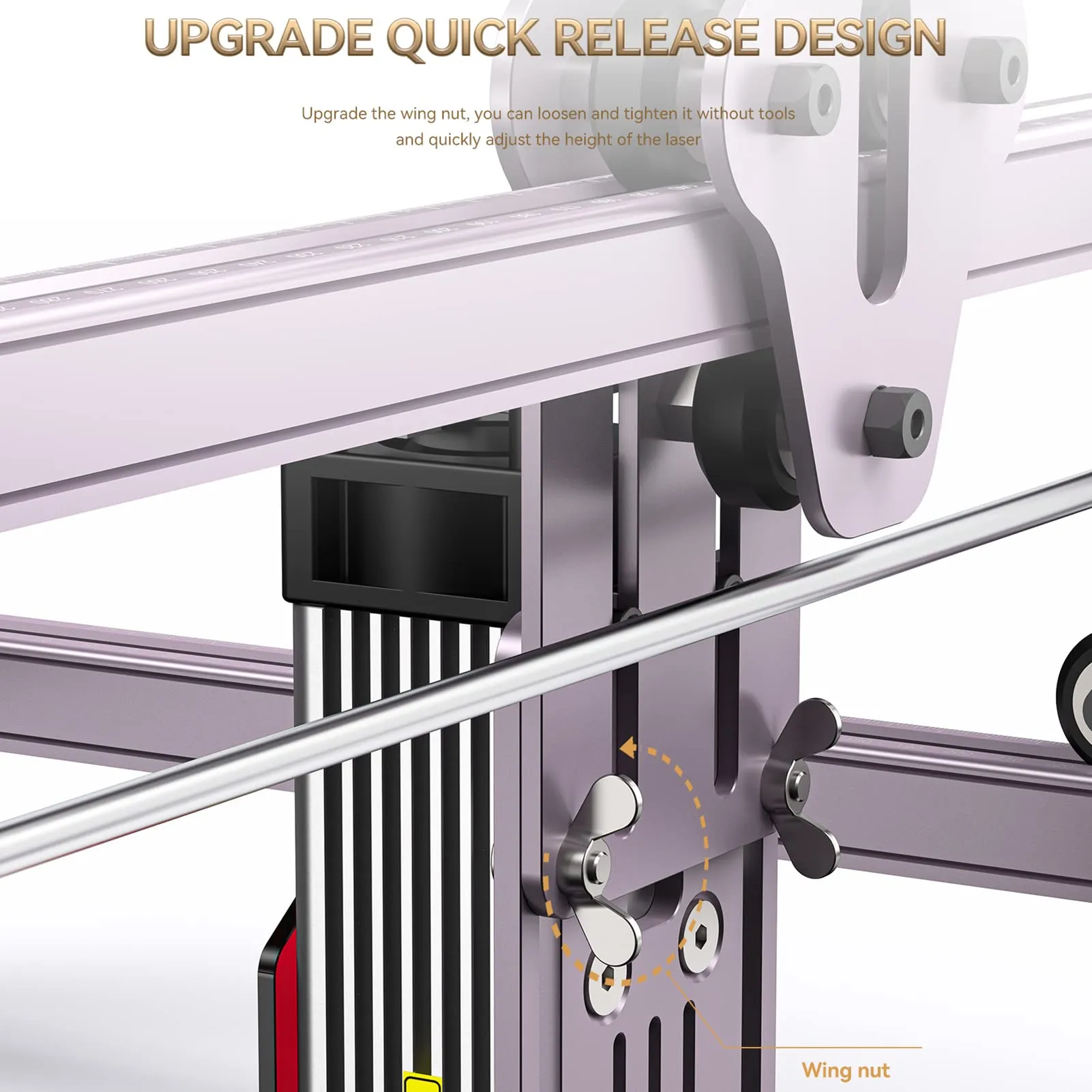

Focusing method: fixed focus laser, free focus

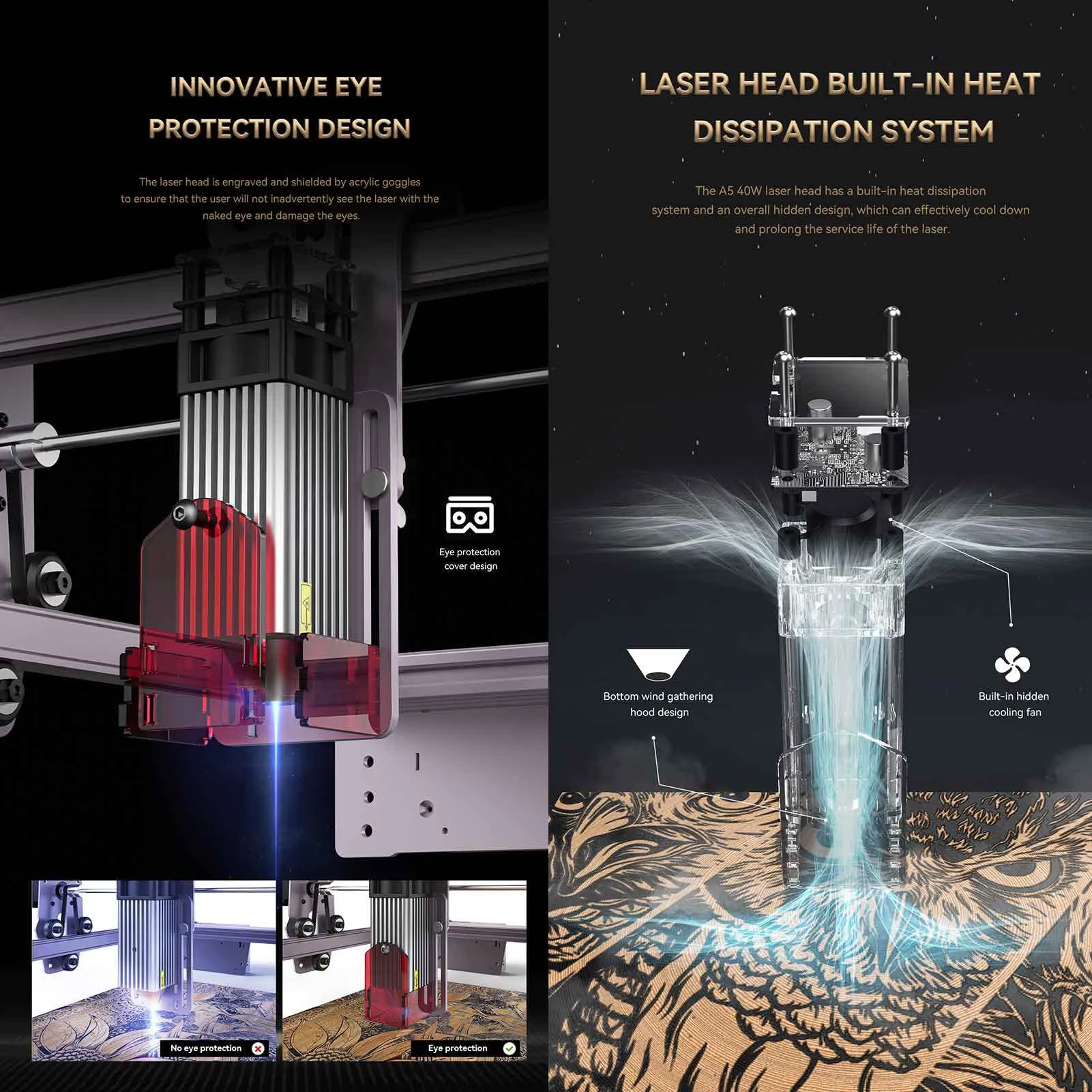

Laser protection cover: there is a protective cover on the laser to protect the user's eyes without the need to wear additional safety glasses. At the same time, it prevents pets from gripping the laser point

Operating software: LaserGRBL, LightBurn, support for Win XP / Win 7 / Win 8 / XP / Win 10 system

Supported file formats: NC, BMP, JPG, PNG, DXF

Data transfer method: USB connection

Power supply: International standard power input: AC 100-240V, 50/60Hz Output: 12V, 5A

R1 PRO Claw Disc Reel

Specifications:

Brand: Atomstack Maker

Machine size: 300 x 101 x 122 mm.

Clamping size range: cylinder: 1-130mm, ball: 4-200mm, ring: 4-130mm

Maximum engraving speed: 6000 mm/min (1000 mm/s).

Engraving accuracy: 0.1 mm.

Engraving weight: 6000mm/min (1000mm/s) can hold items weighing up to 1.5kg, 1800mm/min (300mm/s) can hold items weighing up to 10kg with the suction cup mount

Rotation angle: 0-90°.

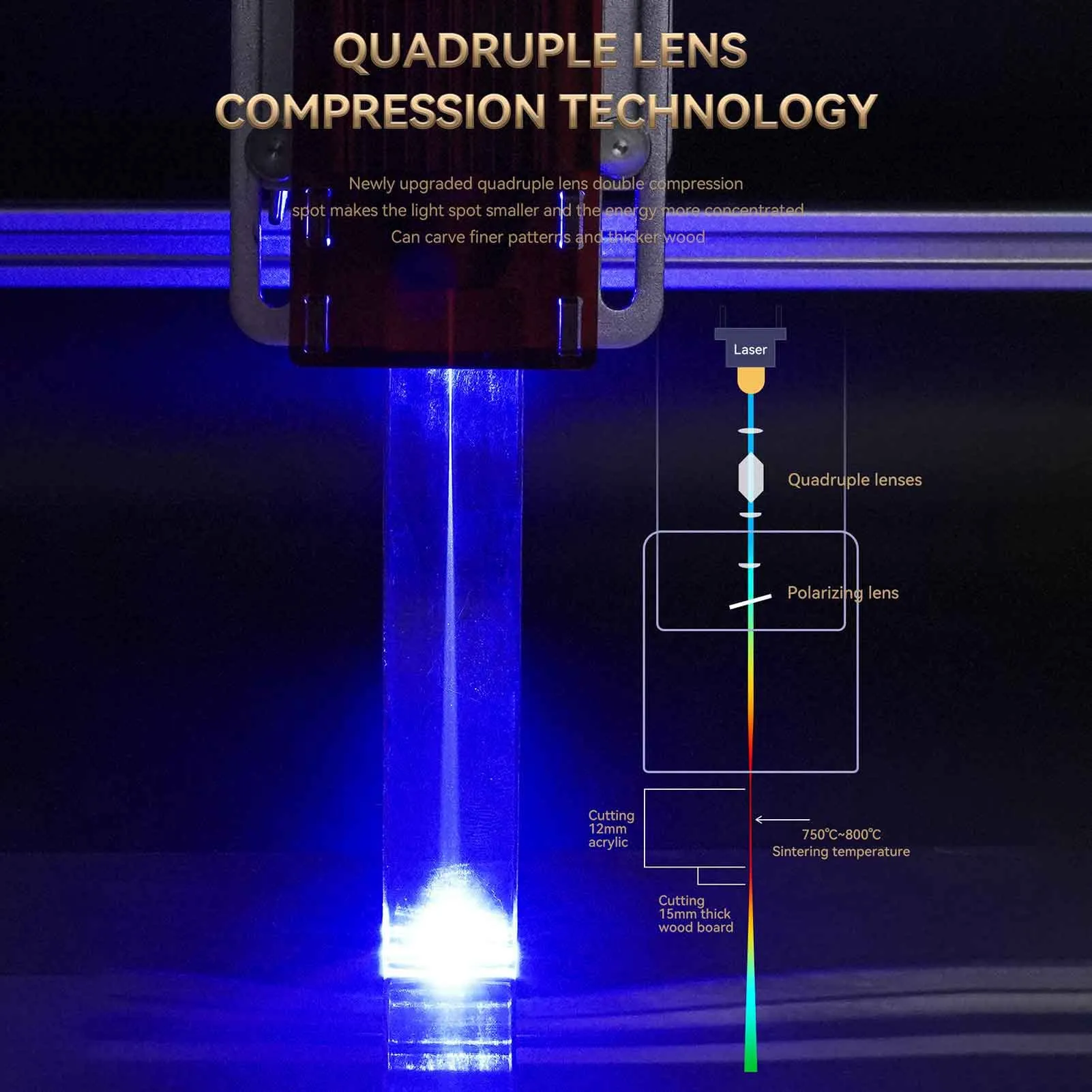

• Excellent laser engraving technology: A5 Pro laser cutter with 5 ~ 5.5 W output power with 0.03 mm² ultra-fine compression laser focus area, the engraving accuracy reaches 0.01 mm, which allows a refined engraving process, it makes cutting on wood and acrylic easy to engrave uncoated stainless steel metal directly.

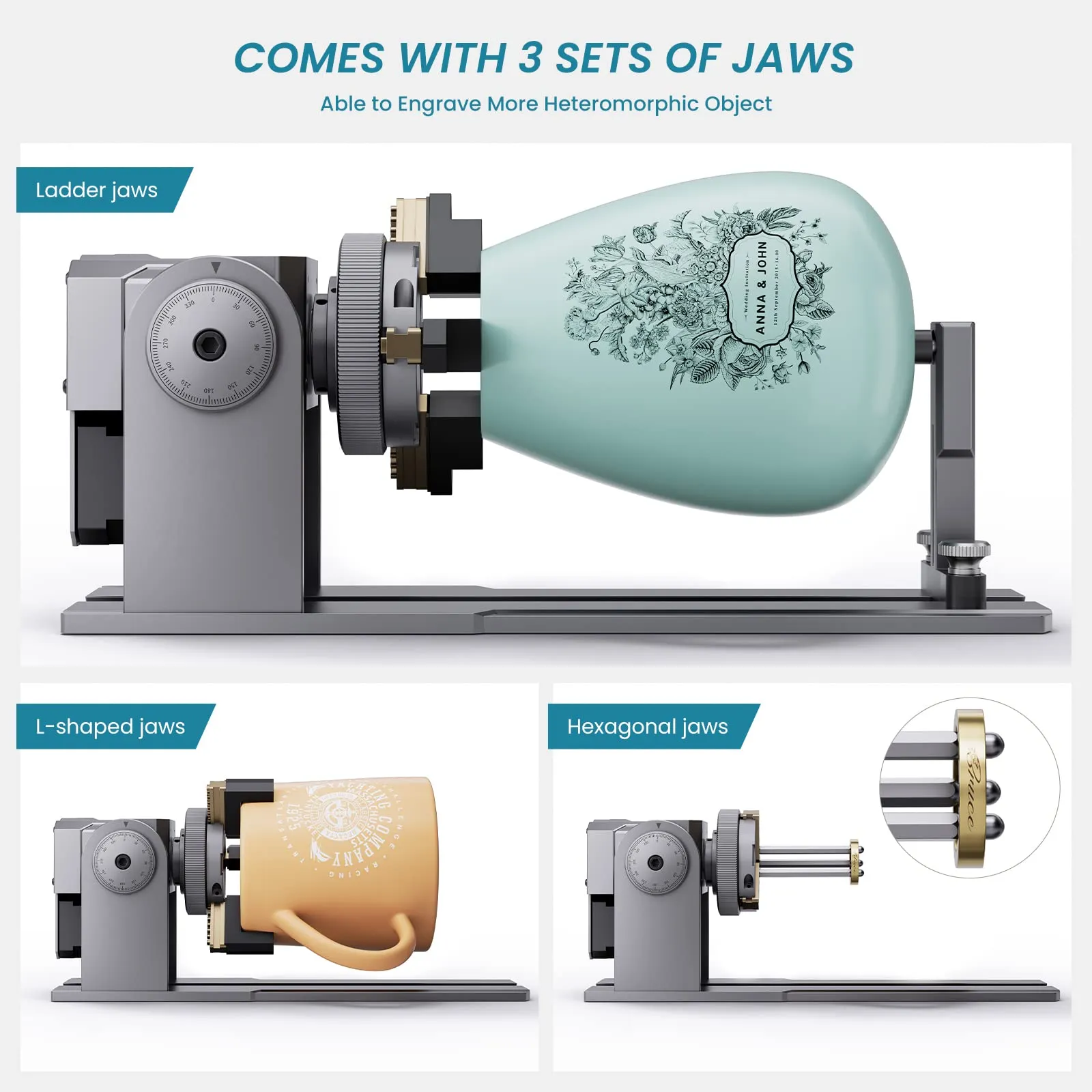

• R1 roller: Atomstack R1 claw disc roller, the maximum engraving speed can reach 6000 mm/min and the engraving accuracy can reach 0.1 mm; can break the limit of the plane and easily perform laser engraving on the surface of various specially shaped objects, such as Cups with handles, drinking glasses, specially shaped cylinders, etc.; balls: baseball, glass balls, table tennis balls, etc

• 180° panoramic visible: UV filter-inhibiting acrylic on the laser module can filter 97% of ultraviolet light and protect your eyes and people around you. The special design with 180° panoramic viewing area allows you to observe your artwork during production

• Solid full metal structure: full body made of anodised aluminium alloy, solid and durable, the incredibly stable structure reduces all shocks when the laser cutter and engraving machine work, together with the integrated screw rods (most others use a combined coupling) integrated into the stepper motor, making the entire engraving and cutting process efficient and accurate, even at a maximum speed of 3000 mm/min.

• Extensive compatibility: the machine can be compatible with various sophisticated engraving software such as LaserGRBL, LightBurn, support for Win XP / Win 7 / Win 8 / XP / Win 10 and also support for Mac system (LightBurn), engraving file format support NC, BMP, JPG, PNG, DXF etc.
